Car type aging furnace

Car type aging furnace

The trolley-type aging furnace is a kind of equipment used for aging treatment of metal materials. It is used for heat treatment of aluminum alloy materials such as alloy cylinder blocks, wheels, castings, aluminum plates, aluminum coils and other products. Aging treatment usually includes tempering, annealing and aging heat treatment, and the temperature is generally within 650°C. In the aerospace field, it is often used for aging treatment of aircraft engine parts to improve the strength and corrosion resistance of the material. In the automotive industry, it is used for aging treatment of engine cylinder blocks, crankshafts and other parts to improve the grain structure and performance of the material. In addition, it is also suitable for the aluminum alloy industry for aging treatment of aluminum alloy castings, die castings and profiles to reduce stress concentration and deformation.
Inquiry
  • Overview
  • Parameter
  • Inquiry
  • Related Products



Equipped with a novel hot air circulation system to ensure uniform temperature inside the furnace, fundamental breakthroughs in wind pressure, flow, positive and negative pressure exchange technologies have been made, improving the uniformity of furnace temperature.


The PID regulation controller has high temperature control accuracy and can accurately control the temperature in the furnace to ensure that the workpiece is aged within the ideal temperature range.


It is easy to operate, runs smoothly, and saves effort in loading and unloading workpieces. The furnace is designed as a periodic heating furnace, suitable for intermittent operation, and is particularly suitable for heating large workpieces and workpieces with complex shapes.


It has over-temperature alarm and dual control functions to ensure that the workpiece does not overheat. The mechanical transmission parts of the electric furnace adopt interlocking control and operation to improve the safety of the equipment.

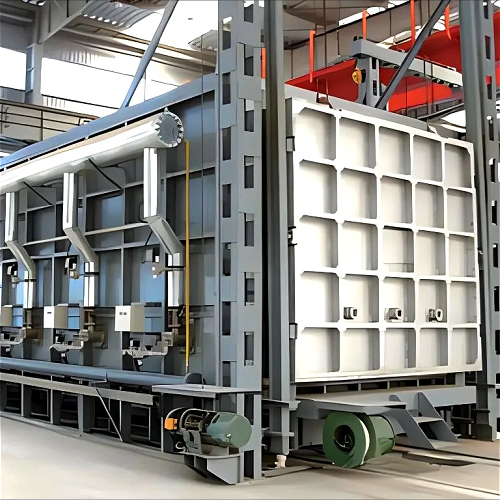

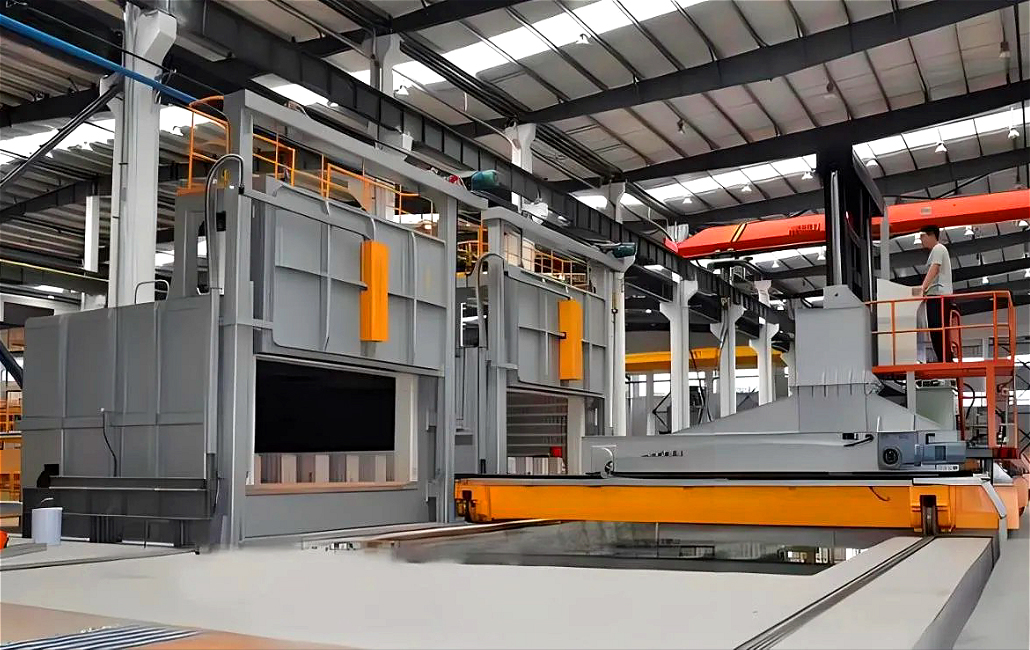

It consists of two parts: a fixed heating chamber and a movable furnace bottom on a trolley. It is equipped with a trolley electric heating element power supply device, a sealing device between the trolley and the furnace body, and a trolley travel drive device. In order to improve the uniformity of furnace temperature, electric heating elements are usually installed under the trolley bottom plate or on the furnace door and rear wall, and a fan is installed on the top of the heating chamber to force furnace gas circulation.


The furnace lining adopts a full fiber structure with good air tightness, easy maintenance, long service life, good energy saving effect, light weight of the furnace body and small temperature rise of the furnace shell.

Model Power
(kw)		 Voltage
 		 Max Temperature
 		 Eftective heatimg zone size
(mm)
DM-AAAF20 20 380V50HZ 300°C 800-800-1000
DM-AAAF30 30 380V50HZ 300°C 1000-1000-1200
DM-AAAF35 35 380V50HZ 300°C 1200-1200-1400
DM-AAAF40 40 380V50HZ 300°C 1400-1400-1600
DM-AAAF50 50 380V50HZ 300°C 1800-1500-1500
DM-AAAF60 60 380V50HZ 300°C 3200-1800-1200
DM-AAAF150 150 380V50HZ 300°C 4200-2000- 2000
DM-AAAF260 260 380V50HZ 300°C 6200-2500-2000
