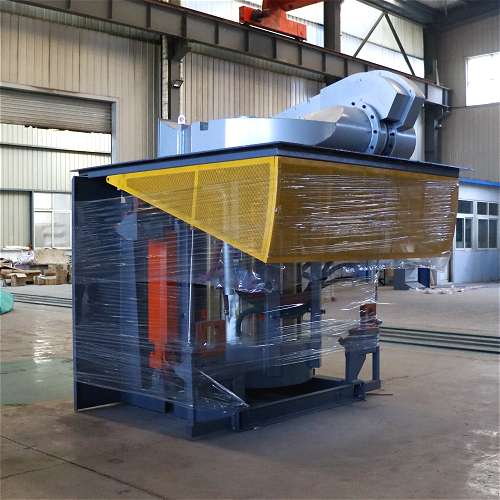

Medium frequency furnace

The medium frequency melting furnace is a power supply device that converts the industrial frequency 50HZ AC into medium frequency (300HZ or more to 20KHZ). This conversion makes the current more suitable for the needs of metal smelting, improving the smelting efficiency and energy utilization. It is used in the smelting of non-ferrous metals and ferrous metals, such as steel, alloy steel, special steel, etc. Its melting capacity and stable performance make it an indispensable and important equipment in modern smelting technology.

Inquiry

Overview
Parameter
Inquiry
Related Products

Using the principle of electromagnetic induction heating, the heat is generated by the workpiece itself, the heating speed is fast, oxidation is very small, the process repeatability is good, materials and costs are saved, and the mold life is extended.

The high degree of automation can realize fully automatic unmanned operation, reduce the labor intensity of workers and improve production efficiency.

Induction heating generates heat inside the workpiece, heating is uniform, and the temperature difference between the core and the surface is extremely small. The application of temperature control system can achieve precise control of temperature, ensure product repetitive accuracy, and improve product quality and qualification rate.

The furnace body and lining are made of new structure and new materials, which shortens the smelting time and reduces heat loss.

It heats the metal by electromagnetic induction, and the temperature rises and melts quickly. It is suitable for intermittent operations and frequent changes in metal grades, and has strong adaptability.

The heating efficiency is high, compared with coal stoves, the energy consumption is low, the labor productivity is high, and there is no pollution.

Suitable for smelting various metals, such as platinum, gold, K gold, silver, copper, aluminum, etc.

Capacity	Power (kw)	Frequency (HZ)	Transformer	Voltage	Rectifier Pulse	Inductor Voltage	Melt Rate	Power Consumption (Kwh/t)
1T	700kw	1000HZ	800KVA	6φ660V	6phase12pulse	1700V	1.1T	680kwh/T
2T	1500kw	500HZ	2500KVA	6φ800V	6phase12pulse	2600V	2.3T	630kwh/T
3T	2000kw	500HZ	2500KVA	6φ950V	6phase12pulse	3200V	3.5T	630kwh/T
5T	2500kw	450HZ	3150KVA	6φ1250V	6phase12pulse	3400V	5.3T	620kwh/T
8T	5000kw	350HZ	6300KVA	6φ1250V	6phase12pulse	3600V	8T	530kwh/T
10T	6000kw	400HZ	8000KVA	6φ1250V	6phase12pulse	3600V	10T	550kwh/T
15T	10000kw	300HZ	2*5500KVA	6φ1250V	112phase24pulse	3600V	15T	500kwh/T
20T	11000kw	200HZ	2*6300KVA	2*6φ1250V	12phase	4000V	20T	500kwh/T
