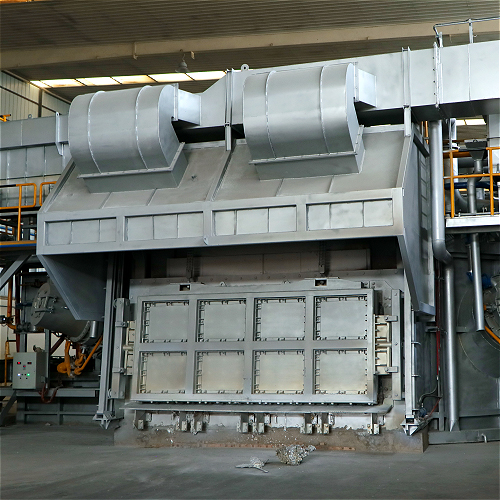

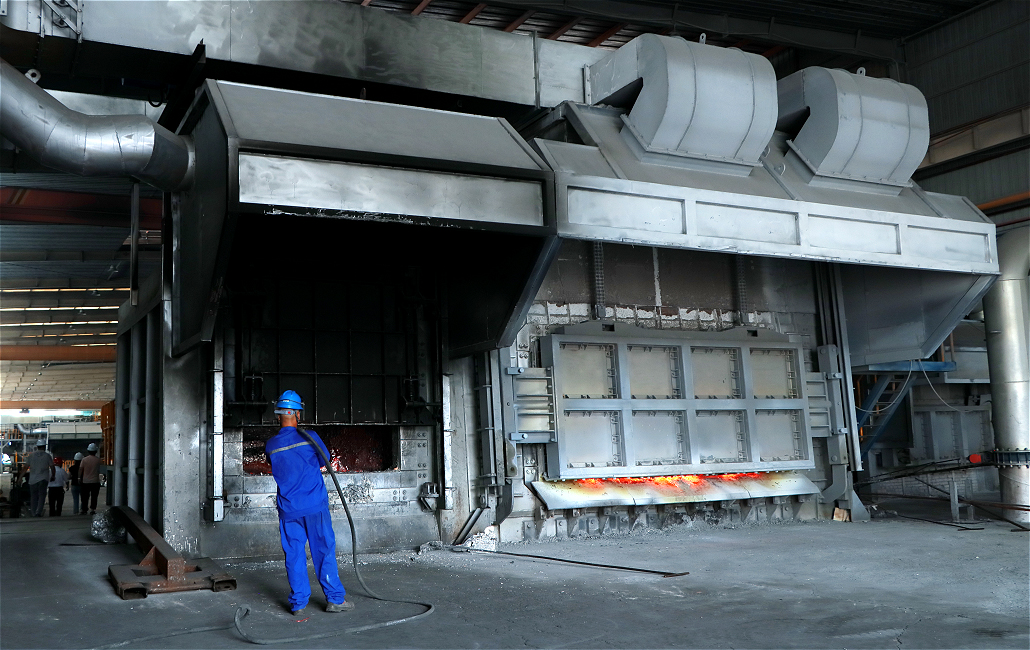

Gas Aluminum Melting Furnace
- Overview
- Parameter
- Inquiry
- Related Products
Using natural gas as fuel, it has high thermal efficiency and low operating cost. Compared with the electric heating crucible furnace, the gas-fired aluminum melting furnace has large melting capacity, high efficiency, low energy consumption, and saves the cost of replacing the electric heating element. In addition, the gas-fired aluminum melting furnace uses imported burners to make the fuel burn completely, the exhaust gas is pollution-free, and the energy-saving effect is significant.
Using natural gas as fuel is clean and safe, making the workshop environment clean and easy to manage. Its combustion process is pollution-free and meets environmental protection requirements.
The dual temperature controller can realize automatic temperature control, automatic melting and automatic heat preservation, and is easy to operate. In addition, the gas aluminum melting furnace is also equipped with a safety door and an alarm system, which can alarm in time when the crucible leaks accidentally to reduce losses.
It is suitable for various fuels, including light oil, heavy oil, residual oil, natural gas, coke oven gas, mixed gas, etc., with a wide range of heat loads. Its burner head is made of high-temperature resistant stainless steel, with a long service life, unique internal design, uniform mixing of fuel and combustion air, and high combustion efficiency.
| Model | Melting Rate (t/h) |
Capacity (Kg) |
Burner Power (Kw) |
Dimension (L*W*H) mm |
|---|---|---|---|---|
| DM-GMF-5T | 1.5 | 5000 | 1000 | 4500*2200*2600 |
| DM-GMF-6T | 2 | 6000 | 1200 | 5500*2200*2600 |
| DM-GMF-10T | 3 | 10000 | 1500 | 4200*4500*3600 |
| DM-GMF-15T | 4 | 15000 | 2000 | 4800*4500*3600 |
| DM-GMF-20T | 4 | 20000 | 2500 | 5500*5500*3600 |
| DM-GMF-25T | 5 | 25000 | 3500 | 6200*6000*3600 |
| DM-GMF-30T | 5 | 30000 | 3500 | 6500*6000*4200 |
| DM-GMF-40T | 6 | 40000 | 3500 | 7500*6000*4800 |
