Box type tempering furnace

Box type tempering furnace

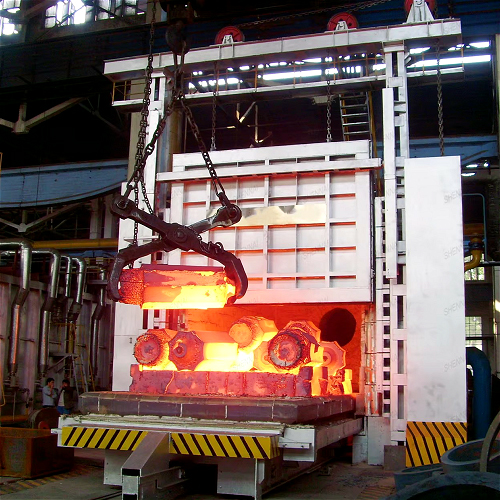

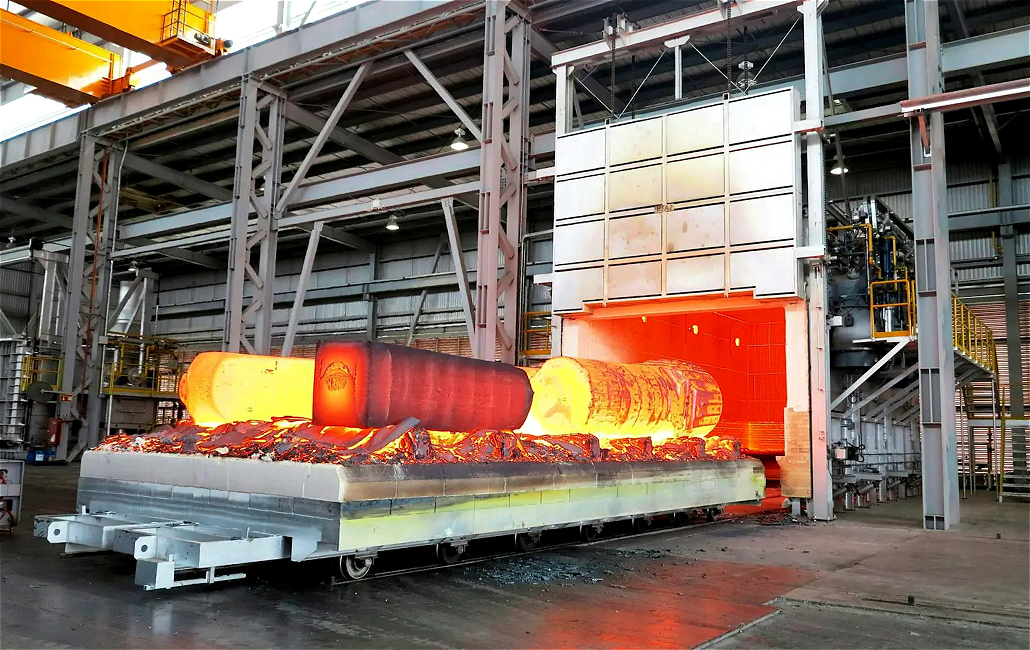

The box-type tempering furnace is a standard cycle operation box-type furnace, which is mainly used for the heat treatment of alloy steel products, various metal parts, aluminum alloys and copper materials, including tempering, solid solution, annealing and aging processes. Its structure includes a hot air internal circulation fan installed on the furnace top, the outer shell is welded and manufactured by national standard steel plates and steel sections, and the furnace lining is made of ultra-light high-aluminum energy-saving insulation bricks and aluminum silicate fiber cotton composite insulation. The electric heating elements are designed for long life, arranged on both sides of the furnace and the bottom of the furnace, and are controlled with high precision by a microcomputer temperature control system.

Inquiry
  • Overview
  • Parameter
  • Inquiry
  • Related Products



The control system and sensors are highly accurate and can accurately control the heating and cooling rates, as well as the final tempering temperature, to ensure that the product achieves the ideal heat treatment effect during the heat treatment process, with an accuracy of ±5℃ to ±10℃.


The transmission line is short, which can effectively shorten the heat treatment time of the product and improve production efficiency.



The intelligent control system can monitor and adjust the temperature and atmosphere in the furnace in real time to ensure the stability of the heat treatment quality of the product.



The full fiber structure is adopted, and the furnace body has no refractory bricks. It has the advantages of fast heating and good heat preservation. The power of the whole machine is 40% energy-saving compared with traditional furnaces.



The furnace frame is made of channel steel and angle steel welding, and the shell side plate is welded with Q235 steel plate. The structure is firm and reliable, not easy to deform, and the appearance is smooth and clean.


The electric furnace has good sealing and is safe and safe to use.

Model length
(mm)		 width
(mm)		 height
(mm)		 Power
(kw)		 Rated Temperature
(°C)		 Heating zones
(per)
TSL880 8000 800 300 165 600 5
TSL890 9000 800 300 180 600 6
TSL980 8000 900 300 180 600 5
TSL990 9000 900 300 220 600 6
TSL1080 8000 1000 300 220 600 5
TSL1090 9000 1000 300 240 600 6
TSL1180 8000 1100 300 240 600 5
TSL1190 9000 1100 300 270 600 6
TSL1280 8000 1200 300 270 600 5
