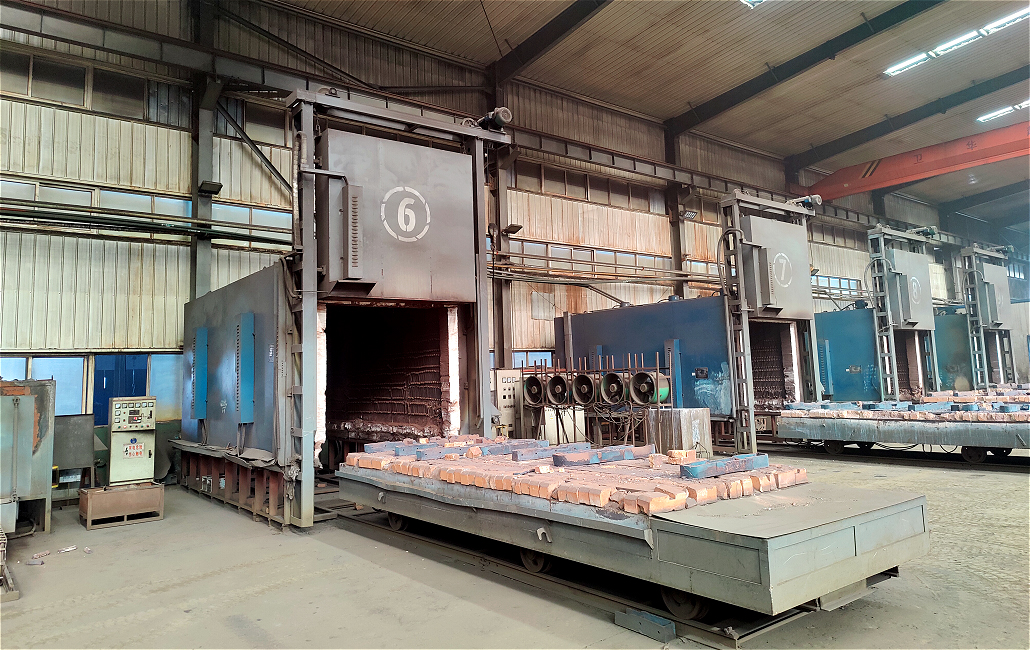

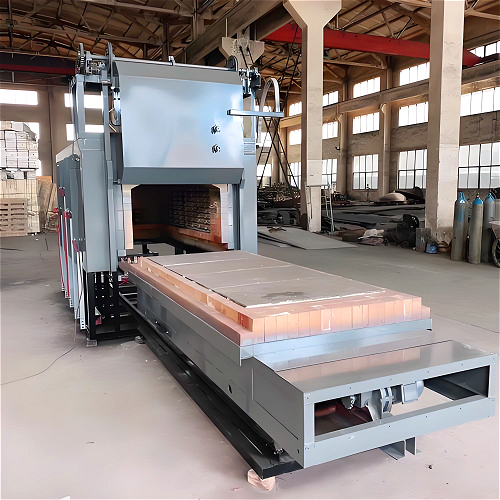

Car type tempering furnace
- Overview
- Parameter
- Inquiry
- Related Products
Using gas as fuel, it can achieve a fast and uniform heating process, accelerate the thermal cycle, and improve production efficiency.
It can save gas consumption, reduce smoke emissions, and achieve energy-saving and environmental protection effects.
It adopts PID programming setting, with high temperature control accuracy and strong furnace temperature uniformity. It can set any temperature according to process requirements, and the temperature control accuracy is ±3℃.
It has a high degree of automation, adopts imported PID intelligent temperature controller and complete automatic control system, which is simple to operate, safe and reliable.
It adopts full fiber furnace lining, fast heating, low power consumption, high heat utilization rate, good energy-saving effect, and the power consumption after constant temperature does not exceed 50% of the rated power.
Long service life, easy maintenance, low investment, and favorable price.
The seal between the furnace door and the furnace body adopts fiber soft contact to ensure that the furnace structure is completely sealed, safe and reliable.
The new resistance belt suspension structure is adopted, which is quick and convenient to install and maintain.
| Model | Rated power (kw) |
Voltage (v) |
Rated Temperature (°C) |
Max. Loading (kg) |
Effective working Size (mm) |
Max. Loading (kg) |
|---|---|---|---|---|---|---|
| RT2-65-10 | 65 | 380 | 1000 | 1000 | 1100*550*450 | 22 |
| RT2-105-10 | 105 | 380 | 1000 | 2500 | 1500*800*600 | 28 |
| RT2-120-10 | 120 | 380 | 1000 | 3500 | 2100*850*750 | 40 |
| RT2-180-10 | 180 | 380 | 1000 | 5000 | 2100*1050*750 | 50 |
| RT2-250-10 | 250 | 380 | 1000 | 9000 | 2400*1500*700 | 80 |
| RT2-320-10 | 320 | 380 | 1000 | 12000 | 3000*1350*950 | 100 |
| RT2-480-10 | 480 | 380 | 1000 | 15000 | 4500*2600*950 | 120 |
| RT2-900-10 | 900 | 380 | 1000 | 28000 | 6000*2500*1200 | 200 |
