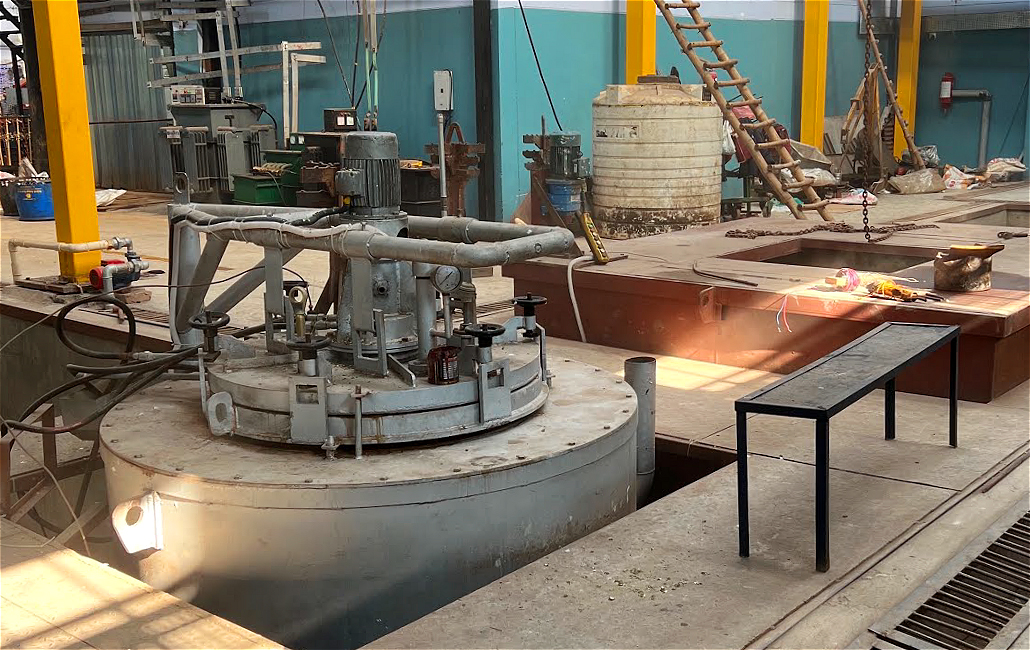

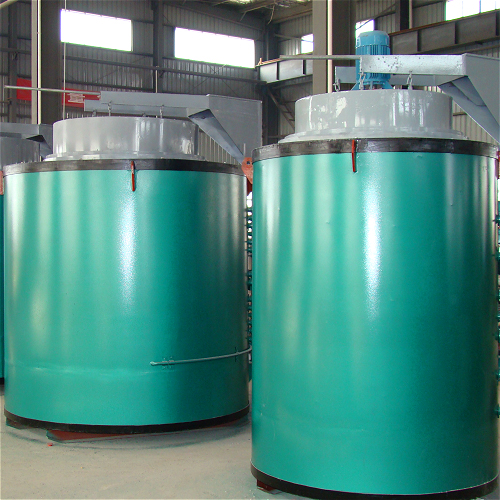

The furnace body is well-shaped, and the workpiece is heated in the vertical direction. This structure makes the workpiece heated more evenly.
It is suitable for the heat treatment of a variety of workpieces, including quenching treatment of mechanical parts such as shaft parts, mold steel, alloy steel, and automotive parts.
Equipped with a special gas circulation mechanism, large flow rate, uniform furnace temperature, can ensure that the workpiece is heated evenly.
The temperature control is precise, the heating speed is fast, the temperature control accuracy is high, and it is equipped with electrical interlocking and over-temperature protection safety devices, which are safe and reliable to operate.
The furnace cover and furnace body are made of ultra-lightweight energy-saving composite furnace lining and high-temperature resistant fiber cotton, which has good thermal insulation performance, saves energy and reduces production costs.
| Model | Rated power (kw) |
Rated Temperature (°C) |
Rated Voitage (v) |
Heating Zone (pc) |
Chamber Size (mm) |
Max. Loading (kg) |
|---|---|---|---|---|---|---|
| RN-25-6 | 25 | 650 | 380 | 1 | Ф400*500 | 100 |
| RN-35-6 | 35 | 650 | 380 | 1 | Ф500*650 | 250 |
| RN-45-6 | 45 | 650 | 380 | 1 | Ф500*800 | 300 |
| RN-60-6 | 60 | 650 | 380 | 1 | Ф600*1200 Ф700*900 |
450 |
| RN-75-6 | 75 | 650 | 380 | 2 | Ф800*1200 | 700 |
| RN-90-6 | 90 | 650 | 380 | 2 | Ф1000*1200 | 1100 |
| RN-105-6 | 105 | 650 | 380 | 2 | Ф1000*1500 Ф1200*1300 |
1500 |
