Salt bath furnace

Salt bath furnace

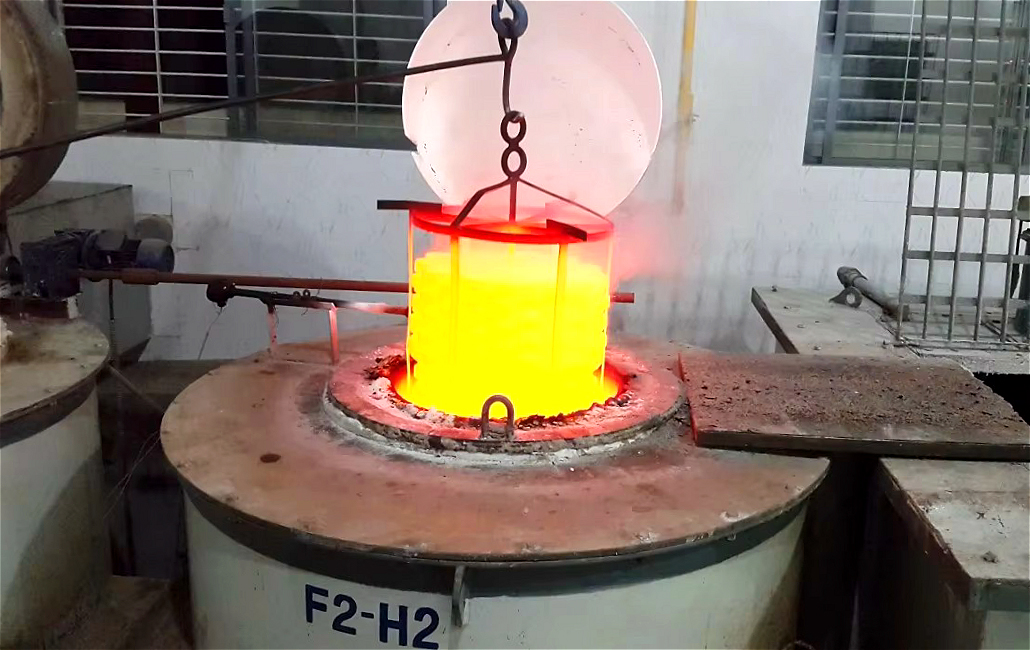

A salt bath furnace is an industrial furnace that uses molten salt liquid as a heating medium and immerses the workpiece in the salt liquid for heating. Electric current is introduced into the furnace through metal electrodes, and the current generates heat through the molten salt liquid, thereby heating the workpiece. The salt bath furnace has a fast heating speed and uniform temperature, which can effectively prevent oxidation and decarburization of the workpiece surface. It is widely used in heat treatment processes of various metal materials, including quenching, annealing, tempering, cyaniding, aging, etc. In addition, it also has important applications in the processing of materials such as carbon steel, alloy steel, tool steel, mold steel and aluminum alloy.
Inquiry
  • Overview
  • Parameter
  • Inquiry
  • Related Products



By heating with high-temperature and high-concentration salt solution, the sample can be effectively prevented from contacting with air, reducing the occurrence of oxidation reactions, thereby obtaining a high-purity product.



The comprehensive heat transfer coefficient of the salt bath furnace is large, the workpiece is in close contact with the bath liquid, the heating is uniform and fast, and the workpiece deformation is small.



The salt bath furnace has a large heat capacity, small heating temperature fluctuations, and is easy to maintain constant temperature heating. It can achieve less oxidation heating and multi-element co-penetration chemical heat treatment.



The local heating operation of the workpiece can be easily realized, which is suitable for the workpiece which needs local processing.



It is suitable for heat treatment heating such as quenching, annealing, tempering, cyaniding, aging, etc. of carbon steel, alloy steel, tool steel, die steel and aluminum alloy, and can also be used for low-oxidation heating during precision forging of steel.

Model Voltage
(v)		 Power
(kw)		 Temperature
(°C)		 Working size
(mm)
RJ3-25-6 380/3P 25 650 φ400*500
RJ3-35-6 380/3P 35 650 φ500*650
RJ3-55-6 380/3P 55 650 φ700*900
RJ3-75-6 380/3P 75 650 φ950*1200
RQ3-25-9 380/3P 25 950 φ300*450
RQ3-35-9 380/3P 35 950 φ300*600
RQ3-60-9 380/3P 60 950 φ450*600
RQ3-75-9 380/3P 75 950 φ450*900
RQ3-90-9 380/3P 90 950 φ600*900
RQ3-105-9 380/3P 105 950 φ600*1200
