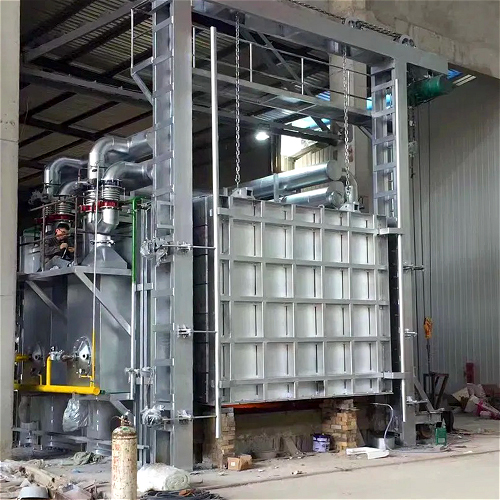

Car annealing furnace

The car annealing furnace is a device used to heat metal materials to change their mechanical properties. It is mainly used to reduce the hardness of metals and improve their ductility. It is widely used in the heat treatment of casting, forging, hot stamping parts and welded components of carbon steel and alloy steel, as well as the quenching heat treatment of other parts. It is mainly suitable for heating heat treatment workshops in steel mills, special steel, mechanical processing, chemical machinery, heavy industry, metallurgy, casting, forging, flange rings, steel components, wire drawing, environmental protection equipment, machinery supporting enterprises, loaders, diesel engines, military industry and other industries. The trolley annealing furnace is divided into high-temperature furnace, medium-temperature furnace and low-temperature tempering furnace. The maximum operating temperature of the high-temperature furnace is within 1200℃, the medium-temperature furnace is within 950℃, and the low-temperature tempering furnace is within 650℃.

Inquiry

Overview
Parameter
Inquiry
Related Products

The use of efficient heating system and heat exchange technology can accurately control the temperature in the furnace, improve heating efficiency and reduce energy consumption.

Equipped with an intelligent control system, it has self-tuning and adaptive functions, is easy to operate, and can realize automatic control and monitoring.

The equipment has multiple safety protection devices to ensure the safety of operators and the stable operation of the equipment, and reduce the incidence of accidents and failures.

Multiple heating elements are used inside to ensure that the temperature is evenly distributed throughout the workpiece to avoid local overheating or overcooling.

It is suitable for annealing of various metal materials, including steel, copper, aluminum, zinc, etc., and is suitable for workpieces of different specifications and shapes.

It uses high-temperature resistant fiber cotton and good thermal insulation performance to save energy and reduce production costs. At the same time, it is pollution-free and has good environmental benefits.

It can be heated by gas, liquid fuel or electricity, with high flexibility.

Model	Rated power (kw)	Voltage (v)	Rated Temperature (°C)	Max.Loading (kg)	Effective working Size (mm)	Weight (kg)
RT2-65-10	65	380	1000	1000	1100550450	3500
RT2-105-10	105	380	1000	2500	1500800600	5100
RT2-120-10	120	380	1000	3500	2100850750	6200
RT2-180-10	180	380	1000	5000	21001050750	8000
RT2-250-10	250	380	1000	9000	24001500700	9500
RT2-320-10	320	380	1000	12000	30001350950	12000
RT2-480-10	480	380	1000	15000	45002600950	22000
RT2-900-10	900	380	1000	28000	600025001200	34000
