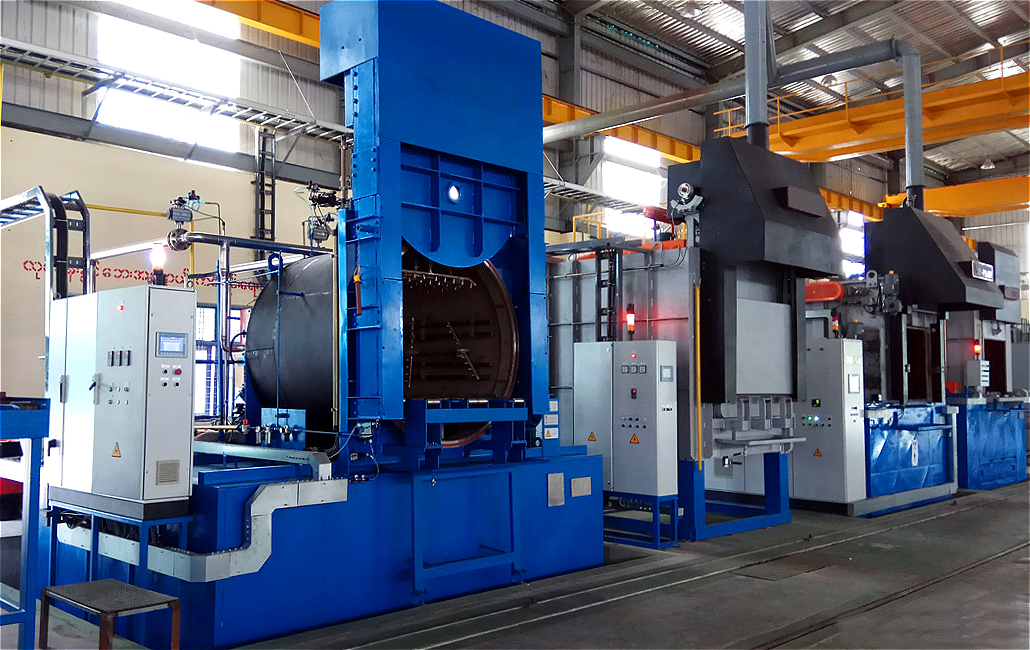

Box type carburizing multi-purpose furnace

Box type carburizing multi-purpose furnace

Box type carburizing multi-purpose furnace is a kind of heat treatment equipment for the surface treatment of metal materials, mainly used for surface carburizing, nitriding and other heat treatment of various metal materials to improve its hardness, wear resistance, corrosion resistance and fatigue strength and other properties. In addition, it can also be tempering, quenching and other heat treatment, through the carburizing process, can increase the carbon content of the workpiece surface, thereby improving its hardness and wear resistance. The nitriding treatment forms a nitriding layer with high hardness on the surface of the workpiece to improve its wear resistance and corrosion resistance. By tempering and quenching treatment, the mechanical properties of metal materials can be improved to meet different process requirements.

Inquiry
  • Overview
  • Parameter
  • Inquiry
  • Related Products



Adopting modern carburizing and nitriding processes, the equipment can achieve high carburizing and nitriding depth and uniformity in a short period of time, then significantly improves the surface hardness, wear resistance, corrosion resistance and fatigue life of metal materials.



The box-type multi-purpose nitriding furnace is easy to operate, of high control precision, and can be automatically controlled through the operation interface such as touch screen, which reduces the tedious degree of manual operation and the labor intensity of the operator.



Adopting advanced heating methods and high temperature insulation materials, the equipment runs stably with high heating efficiency and energy saving performance.



It can handle various metal materials, including carbon steel, alloy steel, stainless steel, cast iron, etc., and can carry out a variety of heat treatment operations according to different process requirements, with strong applicability and flexibility.



Muffle round furnace is used in the design of box-type multi-purpose furnace. Improving the uniformity of furnace temperature and atmosphere, the atmosphere circulation in the furnace is greatly improved, and the energy saving effect is remarkable.



The equipment is equipped with perfect fault diagnosis and safety interlocking control system. Adopting the thyristor power regulator to continuously control the heating process, the temperature control is accurate, and the overall performance of the equipment is stable and reliable.

Model Power
(kw)		 Working size
(mm)
Loading capacity
(kg)
Body size
(mm)
quenching heating power
(kw)
SQC-650 90 W650*H650*L1100 650 W2400*H4000*L4400 30
SQC-1200 142 W700*H850*L1300 1200 W2600*H4600*L4700 48
SQC-1500 180 W900*H900*L1500 1500 W2800*H5000*L5300 64
SQC-3000 270 W1400*H900*L1800 3000 W4700*H5700*L7000 72
